BLH Series Brushless DC Motors (BLDC Motors) - DC Input

Thương hiệu:
ORIENTAL- MOTOR
Mã sản phẩm
Liên hệ

Tiết kiệm được:

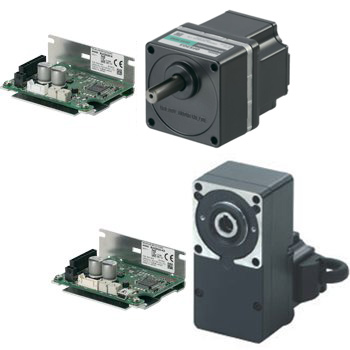

The BLH Series Driver has been updated to now include three driver types; RS-485 Communications type, a Digital type driver or the traditional Analog type. The BLH Series is a 24 VDC, brushless DC motor and driver package offering a wide speed range of 100 to 3000 r/min (80 to 3000 r/min with digital driver type and RS-485 communication type). RS-485 Communication and Digital type driver is used with our MEXE02 support software (available for free download) for improved functions including torque sensing and predictive maintenance monitoring. A wide range of motor options are available to meet you application needs. The BLH Series comes with long-life, high-strength gearheads that can produce up to 600 lb-in of torque. Compact, Board-type Driver (Analog, RS-485 Communication or Digital type) Cable or Connector Type Motors Speed Control via Potentiometer, DC Voltage or Support Software (Digital type) Torque Sensing and Monitoring (RS-485 or Digital type) 24 VDC Parallel Shaft, Hollow Shaft Flat Gear or Round Shaft (no Gear) Electromagnetic Brake Available

Đổi Mới Miễn Phí Trong Vòng 7 Ngày.
Đổi Và Bảo Hành Cực Dễ, Chỉ Cần Số Điện Thoại.
Giao Hàng Toàn Quốc.

Buy

  • Chia sẻ qua viber bài: BLH Series Brushless DC Motors (BLDC Motors) - DC Input
  • Chia sẻ qua reddit bài:BLH Series Brushless DC Motors (BLDC Motors) - DC Input

Output Power

Gear Options

Options

Power Supply

Rated Torque

Speed Range

15 W Brushless DC Motors

15 W (1/50 HP) Brushless DC Motors & Gear Motors

Parallel Shaft

-

24 VDC

1.94 ~ 17.7 lb-in

0.22 ~ 2 N·m

100 ~ 3000 r/min
(80 ~ 3000 r/min with RS-485 or Digital Driver)

Min: 0.5 [200:1]
Max: 600 [5:1]

Round Shaft (no Gear)

6.8 oz-in

0.048 N·m

30 W Brushless DC Motors

30 W (1/25 HP) Brushless DC Motors & Gear Motors

Parallel Shaft

Electromagnetic Brake

24 VDC

4.6 ~ 53 lb-in

0.52 ~ 6 N·m

100 ~ 3000 r/min
(80 ~ 3000 r/min with RS-485 or Digital Driver)

Min: 0.5 [200:1]
Max: 600 [5:1]

Hollow Shaft Flat

4.0 ~ 150 lb-in

0.46 ~ 17 N·m

Round Shaft (no Gear)

16.3 oz-in

0.115 N·m

50 W Brushless DC Motors

50 W (1/15 HP) Brushless DC Motors & Gear Motors

Parallel Shaft

Electromagnetic Brake

24 VDC

7.6 ~ 141 lb-in

0.86 ~ 16 N·m

100 ~ 3000 r/min
(80 ~ 3000 r/min with RS-485 or Digital Driver)

Min: 0.5 [200:1]
Max: 600 [5:1]

Hollow Shaft Flat

7.1 ~ 300 lb-in

0.81 ~ 34 N·m

Round Shaft (no Gear)

27 oz-in

0.191 N·m

100 W Brushless DC Motors

100 W (1/8 HP) Brushless DC Motors & Gear Motors*

Parallel Shaft

Electromagnetic Bra
